Description

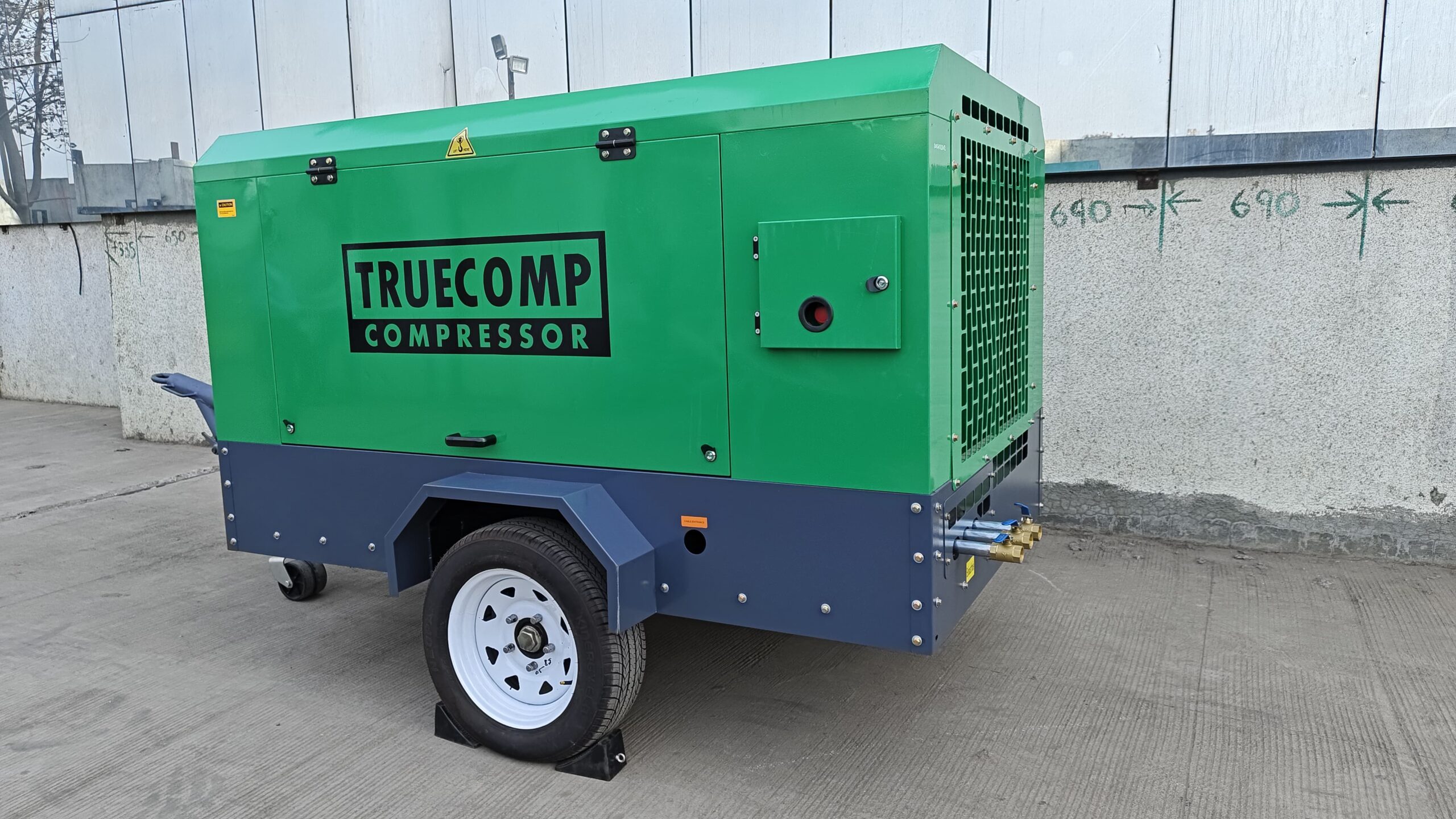

The TrueComp EC415 Electric Portable Air Compressor is a well-balanced, highperformance compressor designed for continuous-duty industrial and infrastructure applications. EC415 is ideal for users who need reliable output, energy efficiency, and long operating life in demanding site conditions.
Technical Specifications – EC415
Description | Unit of Measure | EL425 |
General | ||
Free Air Delivery | CFM | 475 |
Normal Working Pressure | PSI | 100 |
Maximum Ambient Temperature | ˚C | 52 |
Air Outlet Valve (Without Trolley) | - | 1 × 1½" & 2 × ¾" |
Motor | ||
Output (EN60034-1 / IEC34-1) | KW | 75 |
Operating Voltage (±10%) | V | 400 |
Frequency | Hz | 50 |
Ingress Protection | IP | 55 |
Insulation Class | - | F |
Safety | ||
Emergency Stop | Yes/No | Yes |
High Discharge Air Temperature | Yes/No | Yes |
Hot Surface Protection | Yes/No | Yes |
Dimension & Others | ||
Overall Dimension WithTrolley | L × B × H (mm) | 3700 × 1880 × 1700 |
Dry Weight with Trolly | kg | 1700 |
Mounting Type | - | Trolley |
