Description

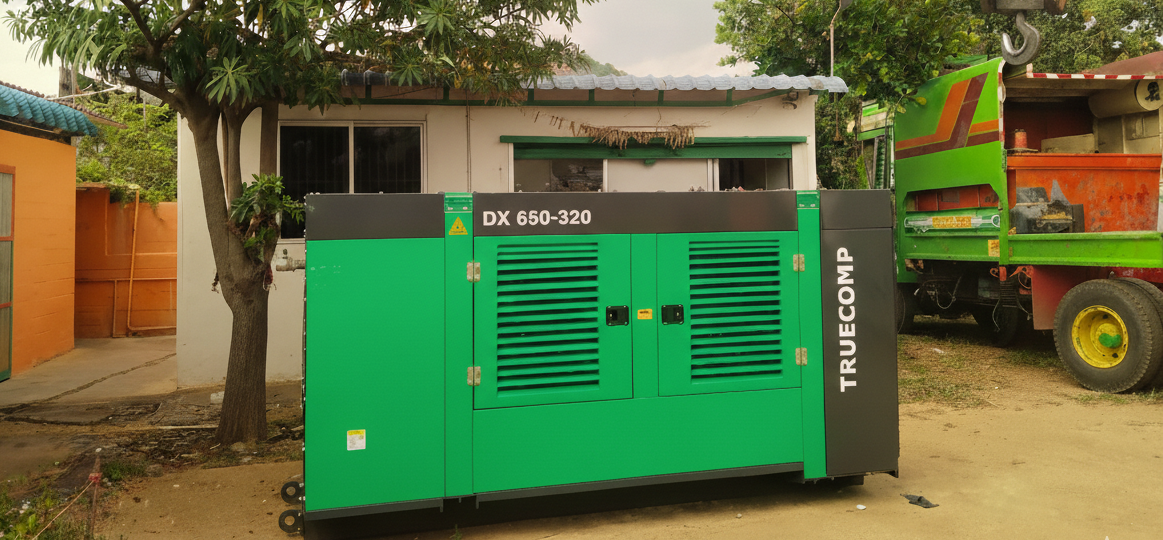

The TrueComp DX650 Diesel Portable Air Compressor is a high-capacity, ultra–highpressure compressor engineered exclusively for water well and borewell drilling applications. Delivering a powerful 650 CFM Free Air Delivery at 320 PSI, the DX650 is designed for deep drilling, hard rock strata, and continuous-duty DTH water well operations.
Technical Specifications – DX650
Description | Unit of Measure | DV 950 |
General | ||
Free Air Delivery | CFM | 650 |
Normal Working Pressure | PSI | 320 |
Maximum Ambient Temperature | °C | 52 |
Compressor Oil Fill Capacity (Refill) | Litres | 50 |
Fuel Tank Capacity | Litres | - |
Engine | ||
Engine Make | - | Ashok Leyland |
Engine Model | - | A6 |
Rated Engine Power | HP | 390 |
Size, Weight & Dimension | ||
Overall Dimension (Skid / Rig – Without Trolley) | L × B × H (mm) | 3387 × 1564 × 1846 |
Working Weight (Skid / Rig) | Kg | 3900 |
Mounting Type | - | Skid Only |
