Description

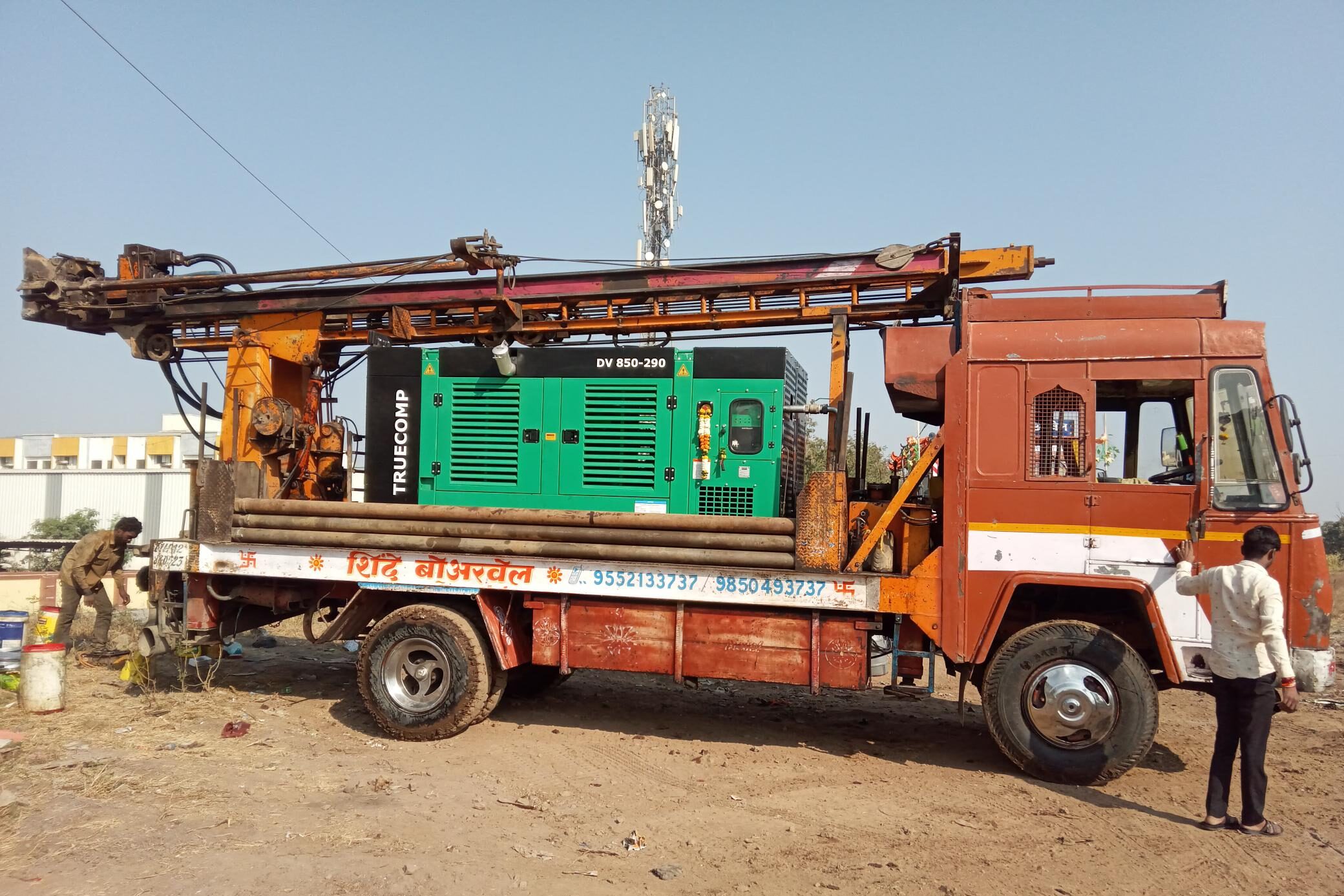

The TrueComp DV850-290 Diesel Portable Air Compressor is a high-capacity, ultra–high-pressure compressor designed exclusively for water well and borewell drilling applications. Delivering an industry-leading 850 CFM Free Air Delivery with a dual working pressure range of 250–290 PSI, the DV850-290 is built for deep drilling, hard rock strata, and continuous-duty DTH operations.
Technical Specifications – DV850-290
Description | Unit of Measure | DV850-290 |
Model | - | DV850-290 |
Free Air Delivery | CFM | 850 |
Normal Working Pressure | PSI | 250–290 |
Maximum Ambient Temperature | °C | 52 |
Compressor Oil Fill Capacity (Refill) | Litres | 70 |
Dual Pressure | PSI | Yes |
Engine | ||
Engine Make | - | Ashok Leyland |
Engine Model | A6 | |
Rated Engine Power | HP | 320 |
Size, Weight & Dimension | ||
Overall Dimension (Skid / Rig – Without Trolley) | L × B × H (mm) | 3387 × 1564 × 1846 |
Dry Weight (Skid / Rig) | L x W x H, MM | |
Dry Weight of the Package with Trolley | Kg | 3900 |
Mounting Type | Skid Only |
