Description

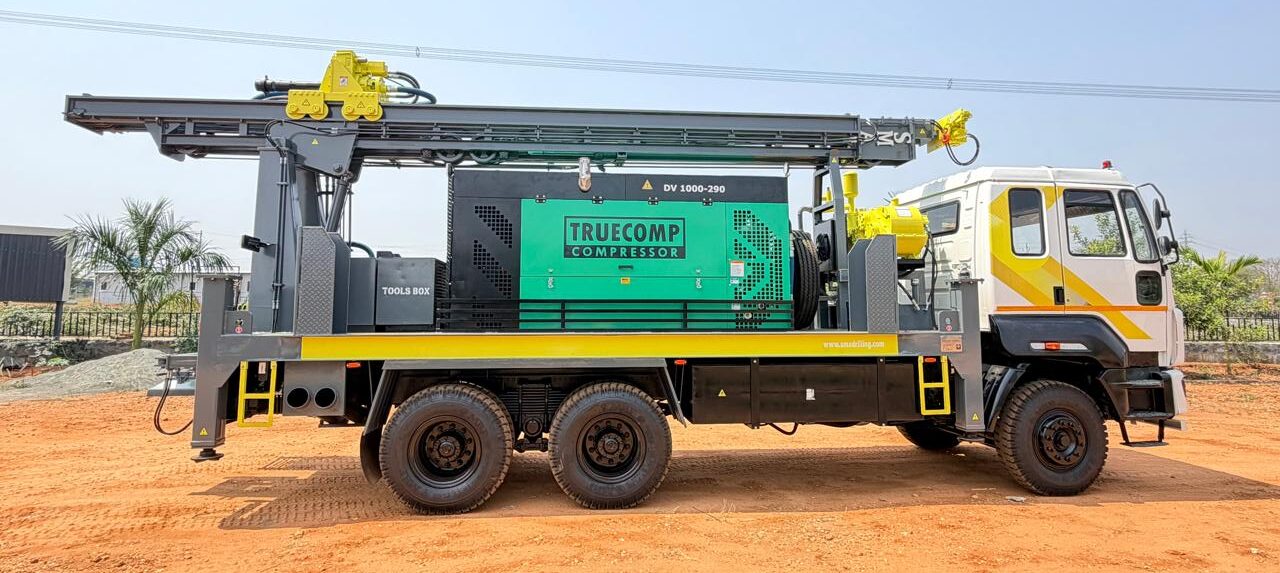

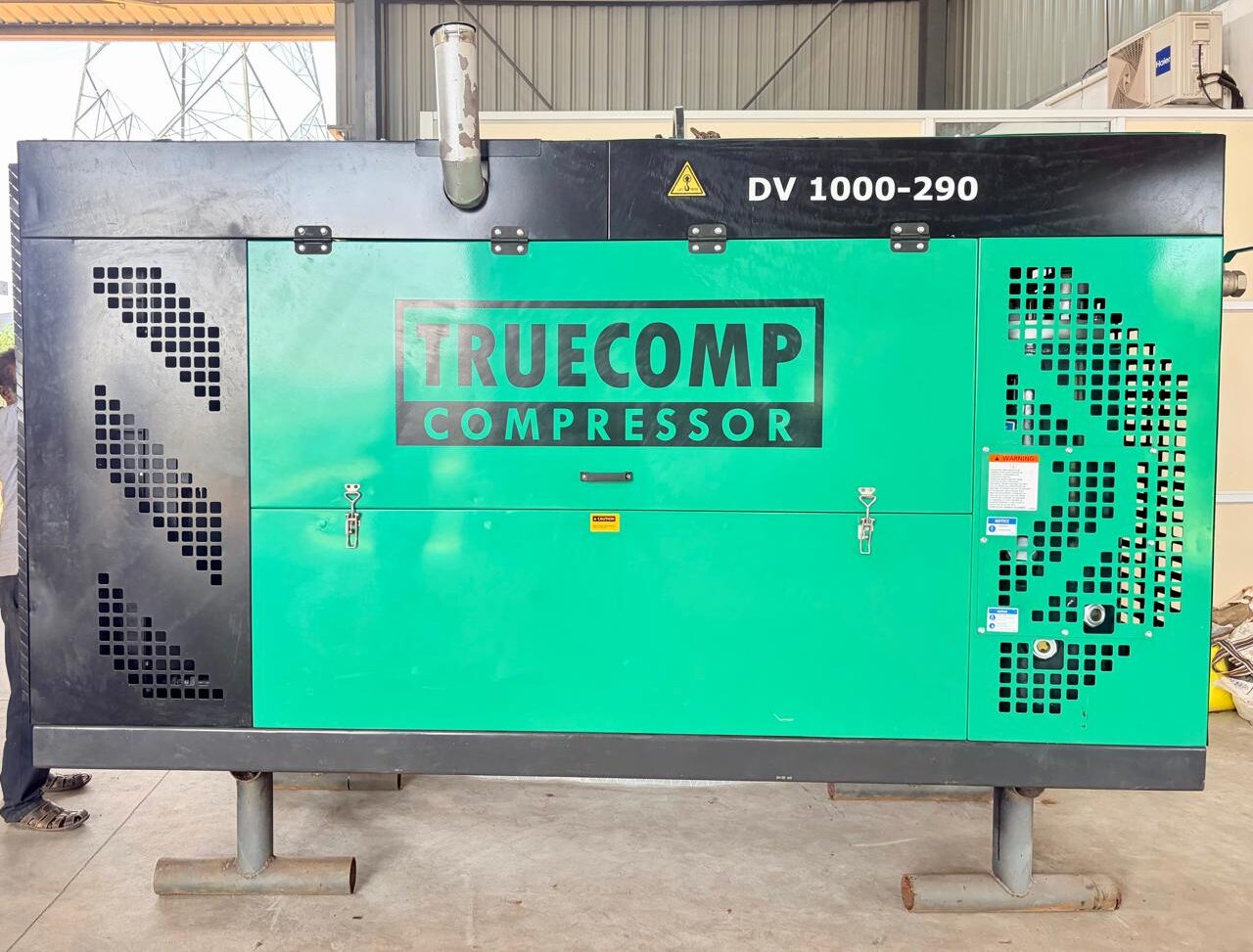

The TrueComp DV1000-290 Diesel Portable Air Compressor is a very high-capacity, ultra–high-pressure compressor engineered exclusively for water well and borewell drilling applications. Delivering an exceptional 1000 CFM Free Air Delivery with a working pressure of 290 PSI, the DV1000-290 is built for deep, hard-rock drilling and continuous-duty DTH water well operations.
Technical Specifications – DV1000-290
Description | Unit of Measure | DV1000 |
General | ||
Model | DV1000-290 | |
Free Air Delivery | CFM | 1000 |
Normal Working Pressure | PSI | 290 |
Maximum Ambient Temperature | °C | 52 |
Compressor Oil Fill Capacity (Refill) | Litres | 70 |
Engine | ||
Engine Make | - | Ashok Leyland |
Engine Model | - | A6 |
Rated Engine Power | HP | 380 |
Size, Weight & Dimension | ||
Overall Dimension (Skid / Rig – Without Trolley) | L × B × H (mm) | 3387 × 1564 × 1846 |
Working Weight (Skid / Rig) | Kg | 3900 |
Mounting Type | - | Skid Only |
