Description

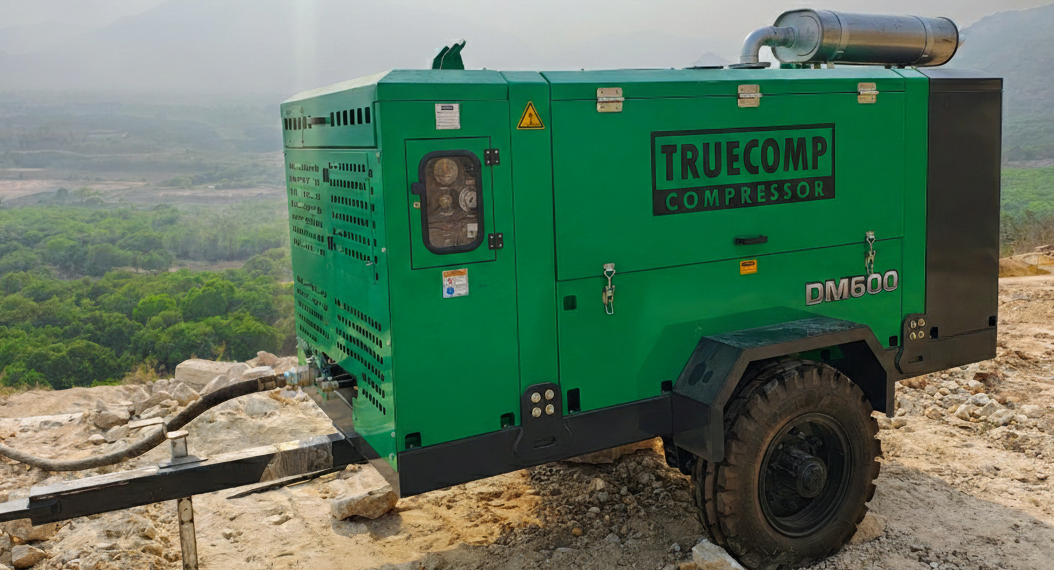

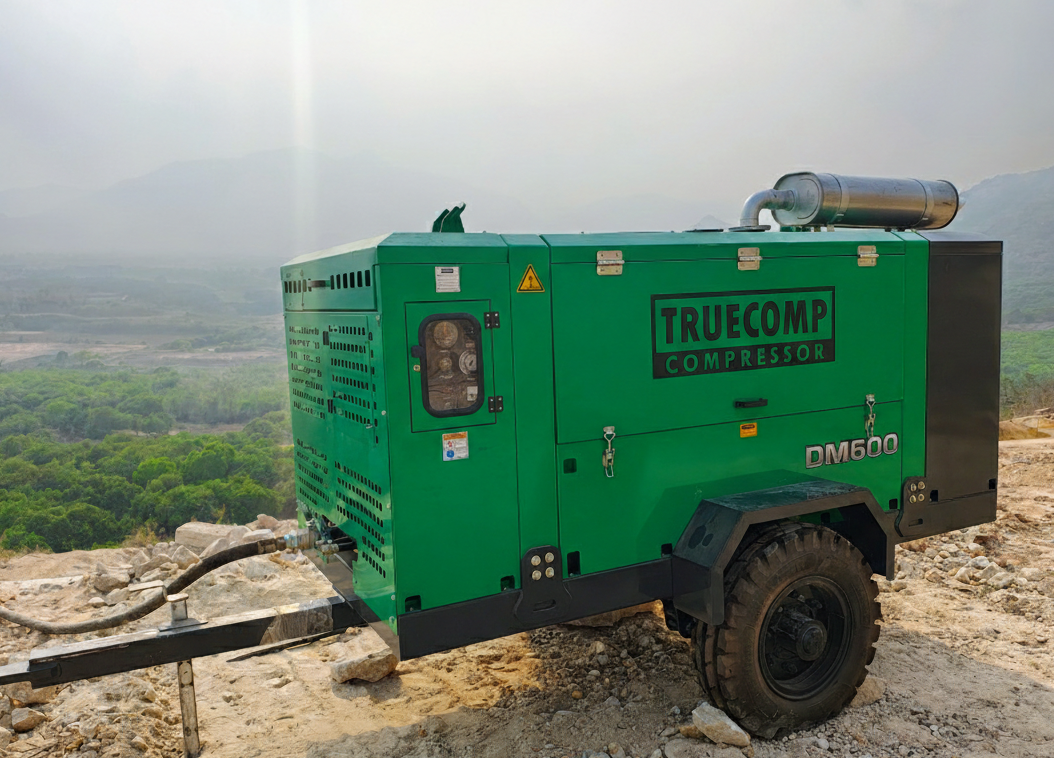

The TrueComp DM600-165 Diesel Portable Air Compressor is a high-performance, mid–high pressure compressor delivering 600 CFM Free Air Delivery with a Duel pressure range of 115–165 PSI. Designed specifically for construction and mining applications, the DM600-165 offers the ideal balance of airflow, pressure, fuel efficiency, and durability for continuous-duty site operations.
Technical Specifications – DM600-165
Description | Unit of Measure | DM600-165 |
Model | - | DM600-165 |
Free Air Delivery | CFM | 600 |
Normal Working Pressure | PSI | 115–165 |
Maximum Ambient Temperature | °C | 52 |
Compressor Oil Fill Capacity (Refill) | Litres | 40 |
Fuel Tank Capacity | Litres | 210 |
Engine | ||
Engine Make | - | Ashok Leyland |
Engine Model | - | H6 |
Rated Engine Power | HP | 220 |
Size Weight & Dimension | ||
Overall Dimension with Trolley (Wheeled) | L × B × H (mm) | 4050 × 1800 × 2100 |
Overall Dimension without Trolley (Skid/ Rig) | L × B × H (mm) | 2857 × 1420 × 1600 |
Working Weight with Trolley | Kg | 2671 |
Working Weight (Skid / Rig) | Kg | 2115 |
Mounting Type | - | Trolley/Skid |
