Description

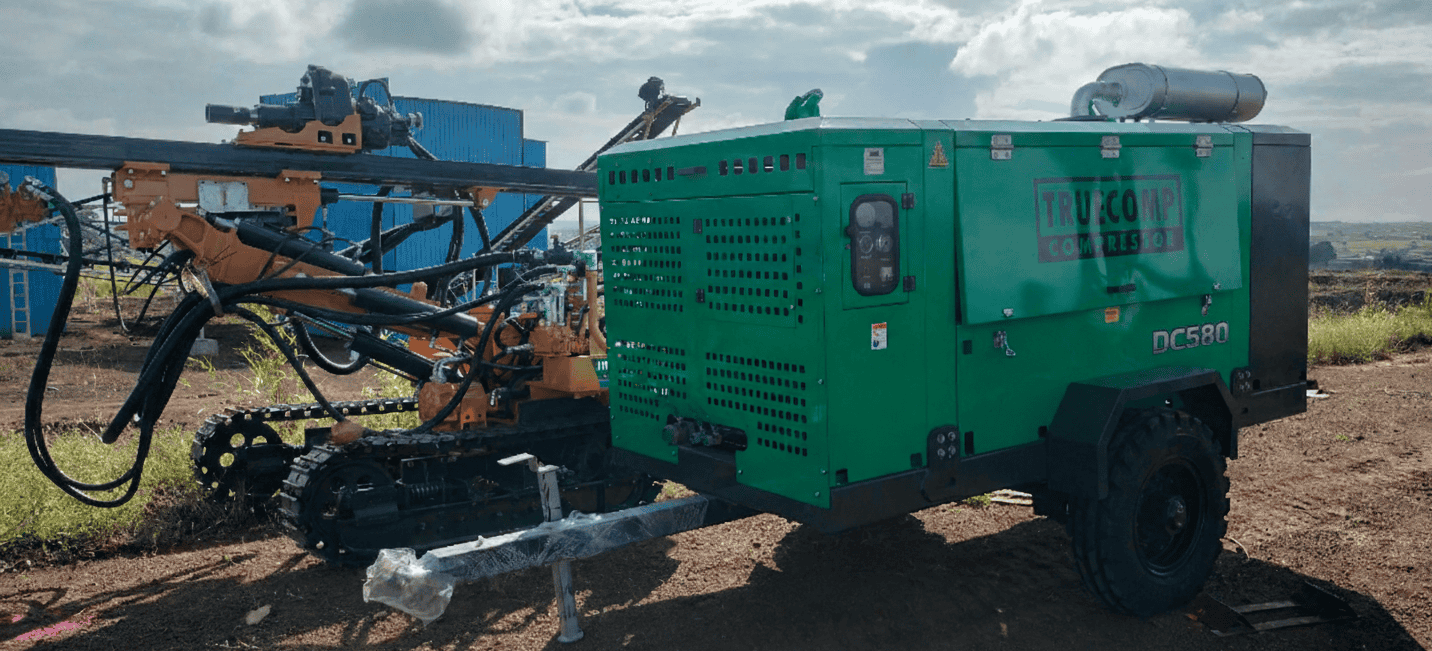

The TrueComp DC580 Diesel Portable Air Compressor is a next‑generation, high‑capacity compressor delivering 580 CFM Free Air Delivery, engineered for heavy‑duty mining, drilling, and infrastructure applications. Powered by a reliable Ashok Leyland diesel engine, DC580 combines best‑in‑class fuel efficiency, advanced safety systems, and robust construction—built specifically for tough Indian operating conditions.
Technical Specification: DC580
Description | Unit of Measure | DC580 |
General | ||
Free Air Delivery | CFM | 580 |
Normal Working Pressure | PSI | 125 |
Maximum Ambient Temperature | ˚C | 52 |
Compressor Oil Fill Capacity (Refill) | Litres | 40 |
Fuel Tank Capacity | Litres | 210 |
Engine | ||
Engine make | - | Ashok leyland |
Engine Model | - | H6 |
Rated engine power | HP | 170 |
Safety | ||
Emergency Stop | Yes/No | Yes |
High Discharge Air Temperature | Yes/No | Yes |
High Coolant Temperature Trip | Yes/No | Yes |
Low Engine Lube Oil Pressure | Yes/No | Yes |
Hot Surface Protection | Yes/No | Yes |
Size, Weight & Dimension | ||
Overall dimention with trolley (Wheeled) | L × B × H (mm) | 4050 × 1800 × 2100 |
Overall dimention without trolley (Skid/ Rig) | L × B × H (mm) | 2857 × 1420 × 1600 |
Working Weight with Trolley | Kg | 2524 |
Working Weight (Skid/Rig) | Kg | 1967 |
Mounting type | - | Trolley / Skid |
