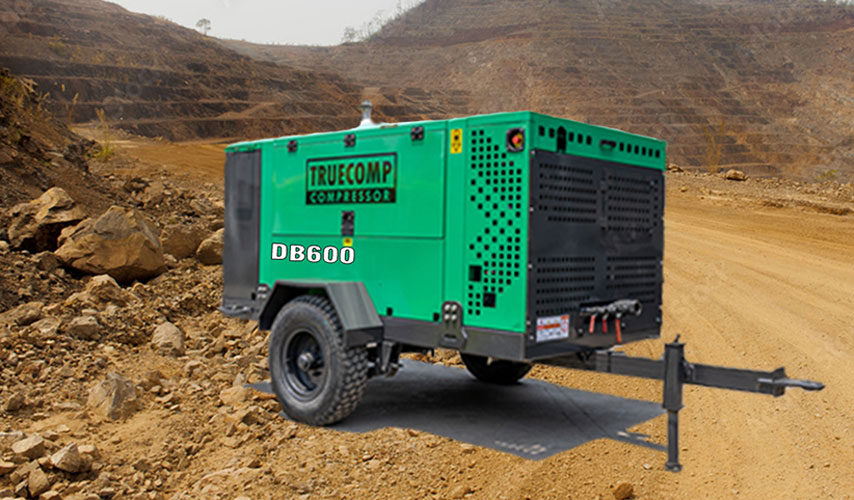

Description
These compressors are available in diesel/electric powered version. These compressors are designed & manufactured for various applications lihe DTH Drilling, Coal Drilling with Excavator Attachments, Oil & Gas Explorations, Pigging, Sand Blasting, Tunnelling, Quarrying, Piling & Road Constructions.
Technical Specification:
MODEL | DB600 |
Free Air Delivery | 600CFM |
Normal Working Pressure | 100PSIG |
Ambient Temperature Range | 5 - 52 ˚C |
Air outlet valve with trolley (Wheeled) | 2 nos of 3/4" & 1 no of 2" |
Air outley valve without trolley (Skid/ Rig) | 1 no of 2" |
Engine make | Ashok leyland |
Rated engine power | 170(125)HP(kW) |
Overall dimention with trolley (Wheeled) | 4080 X 1960 X 2200 L X B X H, MM |
Overall dimention without trolley (Skid/ Rig) | 2850 X 1420 X 1650 L X B X H, MM |
Dry weight of the Package with trolley (Wheeled) | 3000Kg |
Dry weight of the Package without trolley (Skid/ Rig) | 2700Kg |
Mounting type | Wheeled/ Skid |
